Sunscreen Fabric
Super Soft and Light
Sunscreen Fabric
Romantic & Energy Efficient
Sunscreen Fabric
Visible Outside Beauty
Sunscreen Fabric
Privacy Protection
Fabric Backing
Soft and Weldable
| Composition | 26% Polyester -61% PVC-13% Flax |
| Weight/m | 203g ± 5% |
| Thickness | 0.38mm ± 5% |
| Openess factor | ≈15% |
| UV Screen | Up to 85% |
| Breaking | Warp: ≥ 1060 N/5cmWeft :≥770 N/5cm |
| Tear | Warp: ≥ 75 NWeft :≥90 N |
| Width | 250 - 300 cm |
| Packing | 30lm |
| Warranty | 5 years |
| Fire,Smoke Classification | B2(CN) - GB17591 FR(US) - NFPA701 TM#1 |

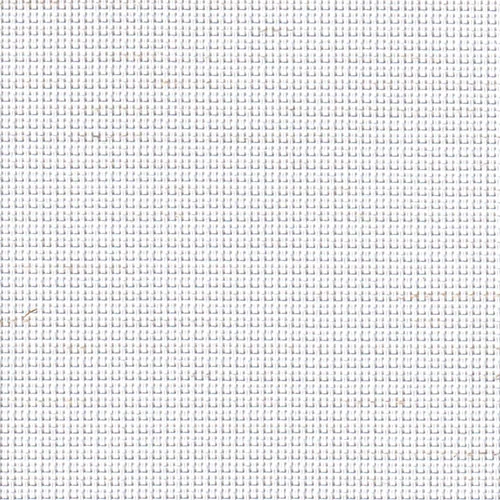

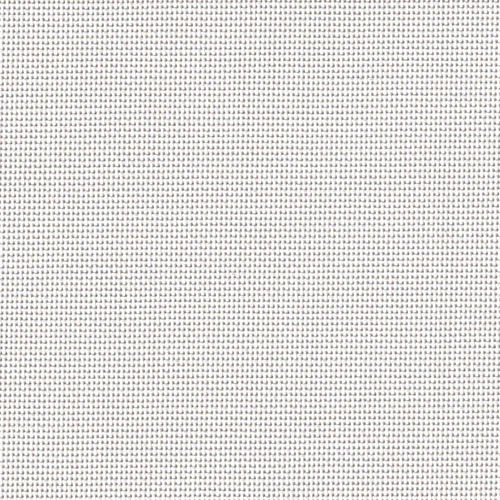

690 White

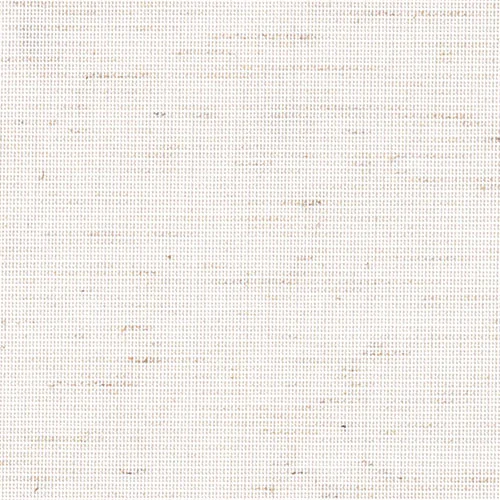

691 Linen
692 Grey
| Composition | 22% Polyester -78% PVC |
| Weight/m | 292g ± 5% |
| Thickness | 0.39mm ± 5% |
| Openess factor | ≈10% |
| UV Screen | Up to 86% |
| Breaking | Warp: ≥ 960 N/5cmWeft :≥800 N/5cm |
| Tear | Warp: ≥ 70 NWeft :≥66 N |
| Width | 250 - 300 cm |
| Packing | 30lm |
| Warranty | 5 years |
| Fire,Smoke Classification |
B1(CN) - GB17591 FR(US) - NFPA701 TM#1 BS (GB) - 5867 Part2 TypeB B1(DE) - DIN4102 |
0101 White/White
0102 White/Linen
0105 White/Grey
| Composition | 23% Polyester -74% PVC-3% Flax |
| Weight/m | 360g ± 5% |
| Thickness | 0.50mm ± 5% |
| Openess factor | ≈3% |
| UV Screen | Up to 97% |
| Breaking | Warp: ≥ 1060 N/5cmWeft :≥770 N/5cm |
| Tear | Warp: ≥ 75 NWeft :≥90 N |
| Width | 250 - 300 cm |
| Packing | 30lm |
| Warranty | 5 years |
| Fire,Smoke Classification |
B1(CN) - GB17591 FR(US) - NFPA701 TM#1 BS (GB) - 5867 Part2 TypeB |
673 White
674 Sand
675 Grey
| Composition | 30% Polyester -70% PVC |
| Weight/m | 315g ± 5% |
| Thickness | 0.44mm ± 5% |
| Openess factor | ≈1% |
| UV Screen | Up to 99% |
| Breaking | Warp: ≥ 1460 N/5cmWeft :≥1200 N/5cm |
| Tear | Warp: ≥ 82 NWeft :≥63 N |
| Width | 250 - 300 cm |
| Packing | 30lm |
| Warranty | 5 years |
| Fire,Smoke Classification |
B1(CN) - GB17591 FR(US) - NFPA701 TM#1 BS (GB) - 5867 Part2 TypeB |
0101 White/White
0102 White/Linen
0462 White/Dark Grey
0104 White/Black
| Composition | 100% Polyester coated with Acrylic |
| Weight/m | 355g ± 5% |
| Thickness | 0.61mm ± 5% |
| Openess factor | ≈0% |
| UV Screen | Up to 100% |
| Breaking | Warp: ≥ 1210 N/5cmWeft :≥910 N/5cm |
| Tear | Warp: ≥ 85 NWeft :≥94 N |
| Width | 280 cm |
| Packing | 25lm |
| Warranty | 5 years |
| Fire,Smoke Classification | Non-FR【FR (US) - NFPA 701 TM#1 by Requirement】 |

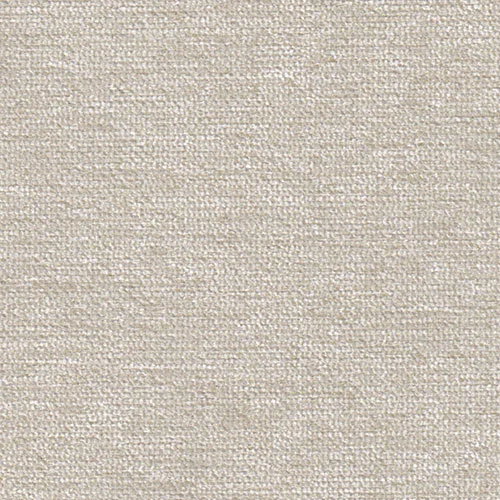

S2267S-1 Linen

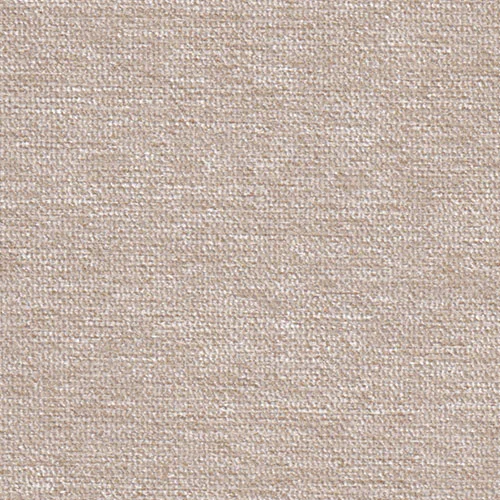

S2267S-2 Sand
S2267S-3 Mocha
