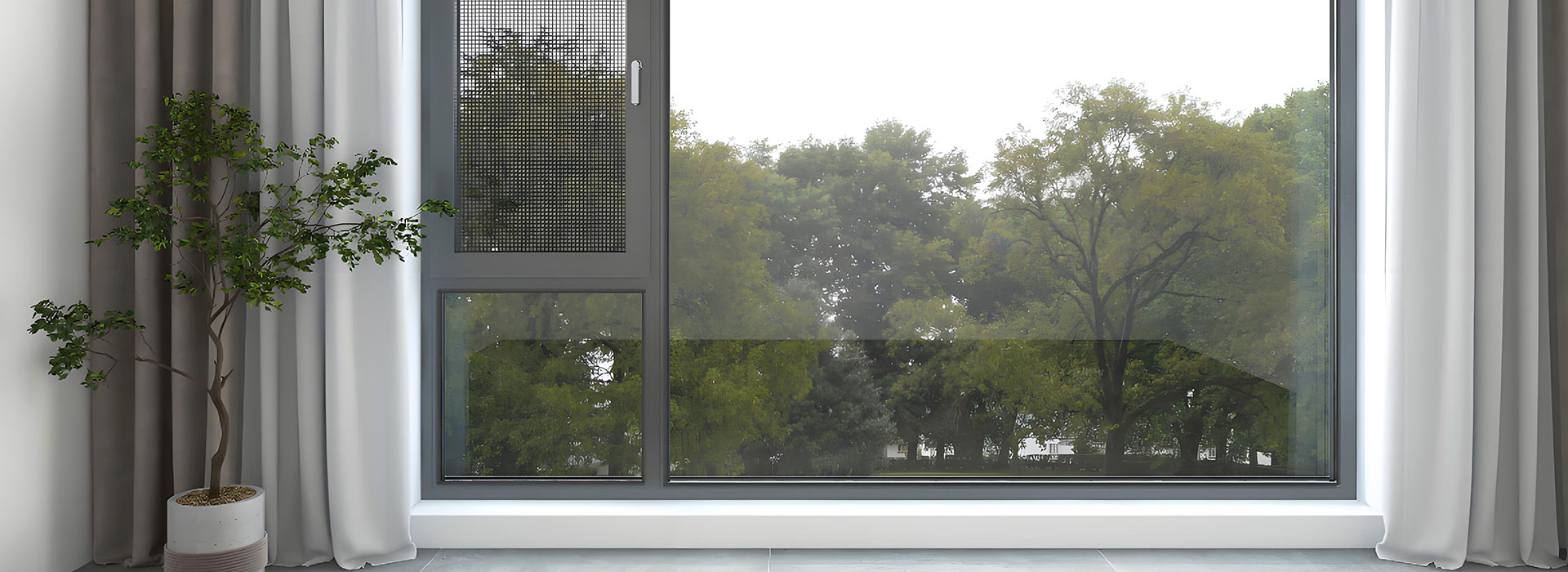

If you want to prevent small insects entering your home without affecting ventilation and the scenery outside, then our insect screen is your ideal choice. Our tiny insect screen is 17/20, its extreme toughness and durability make it the industry-leading choice for outdoor enclosures.

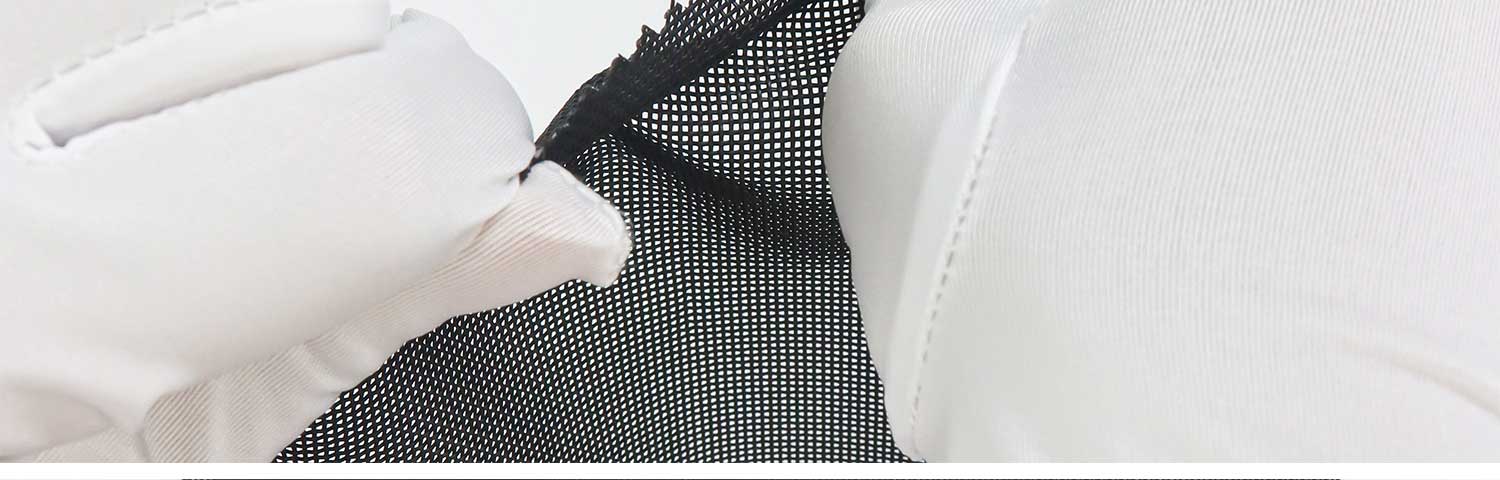

Withstand Dogs Clawing
HanDe insect screen made of polyester and PVC, which makes it very durable, puncture resistance, tear-resistant. It is tough enough to withstand pets pushing against the screen and prevent wild animals getting in.
Keeps Most Tiny Pests Out Of Your Home

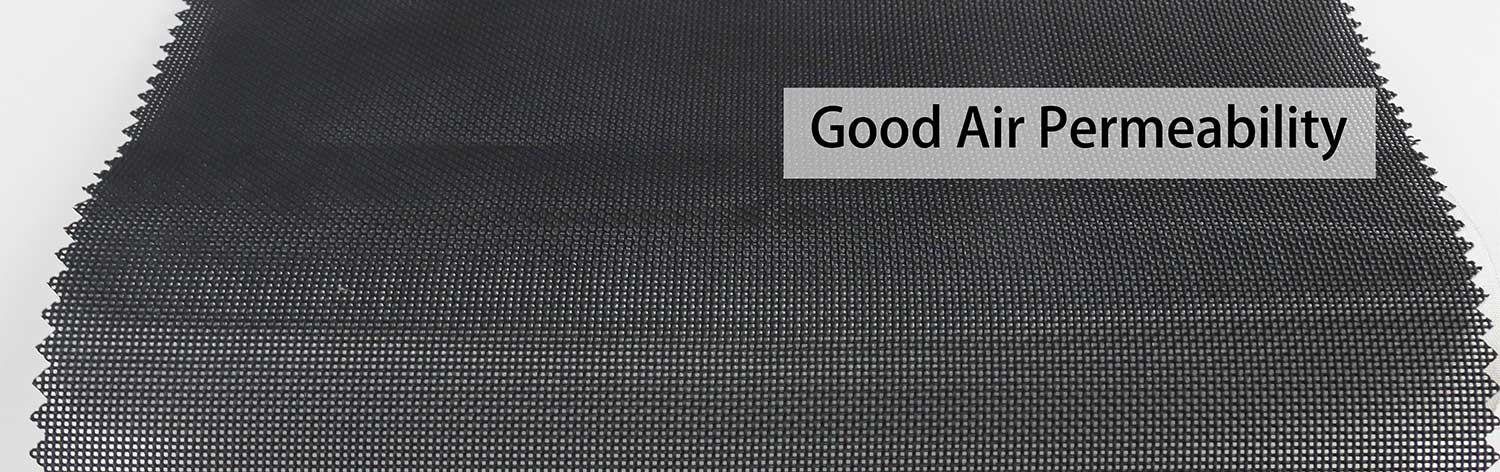

With HanDe insect screen, it can keep most tiny pests out of your home, such as flies, mosquitoes, ladybugs and even other tiniest insects, while without compromise the excellent visibility.
Flame-retardent
In order to increase safety of the buildings, our insect screen passed fire testing, like GB17591-B1(CN), NFPA 701(USA), 5867 PART2(BS), DIN 4102-B1(DE).
No need to worry the Privacy

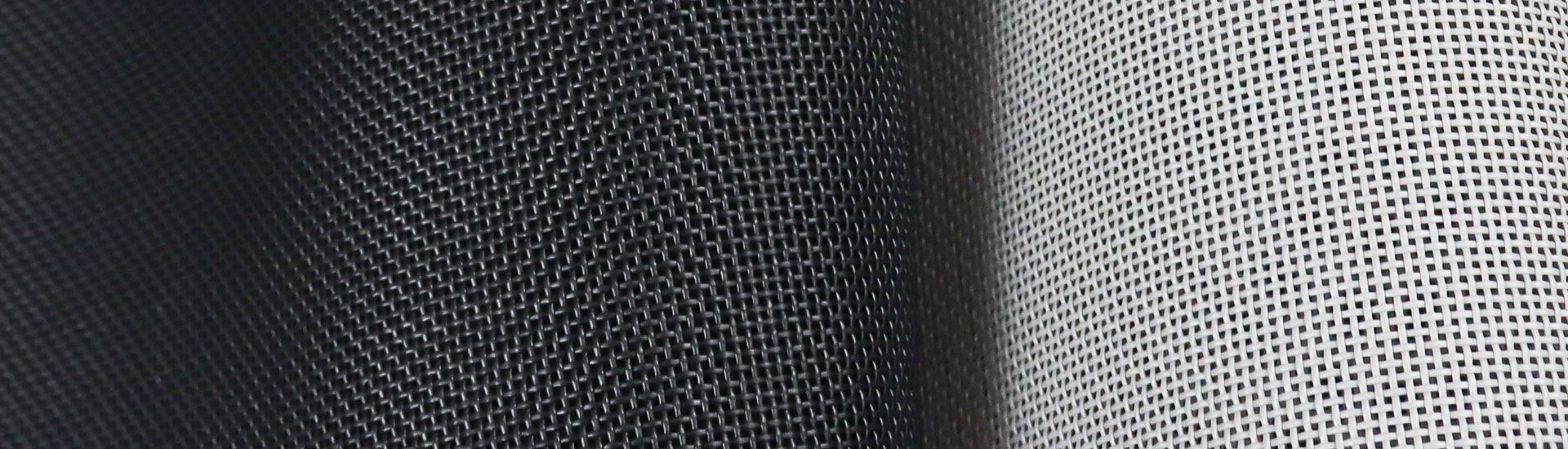

There are two colors in our insect screen series, black and grey. For the daytime, no matter which colors, it provide better privacy to guard against strangers and other haters peering into your home.
| STYLE | 17x14 | 17x20 | IS20 | |
| Composition | 26% Polyester -74% PVC | |||
| Openness Factor | 45% | 35% | 20% | |
| UV Screen | 60% | 65% | 80% | |
| Width | cm | 214 - 244 - 305 | 214 - 244 - 305 | 250-300 |
| Weight | oz/yd2 | 6.61±5% | 6.70±5% | 10.47±5% |
| (ISO 2286-2) | g/㎡ | 224 ± 5% | 272 ± 5% | 355 ± 5% |
| Thickness | inch | 0.023 ± 5% | 0.024 ± 5% | 0.025 ± 5% |
| (ISO 2286-3) | mm | 0.59 ± 5% | 0.62 ± 5% | 0.63 ± 5% |
| MECHANICAL RESISTANCE | ||||
| Breaking | Warp | ≥920 N/5cm | ≥920 N/5cm | ≥1550 N/5cm |
| (ISO 13934-1) | Weft | ≥820 N/5cm | ≥1100 N/5cm | ≥1540 N/5cm |
| Tear | Warp | ≥230 N | ≥ 180 N | ≥ 150 N |
| (ISO 4674) | Weft | ≥180 N | ≥ 220 N | ≥ 130 N |
| Packing | Yards | 33 | 33 | 33 |
| (Roll Length) | lm | 30 | 30 | 30 |
| Fire, Smoke Classification |
B2(CN) - GB17591 FR(US) - NFPA701 TM#1 |
FR(US) - NFPA701 TM#1 B1(CN) - GB17591 |
FR (US) - NFPA 701 TM#1 B1(CN) - GB17591 BS (GB) - 5867 Part2 TypeB B1(DE) - DIN4102 |
|
| Health/Safety |
Oeko-tex Standard 100 class IV Greenguard® EN71 Part 3:1994 RoHS - Lead Free GB18586 - 2001 |
|||

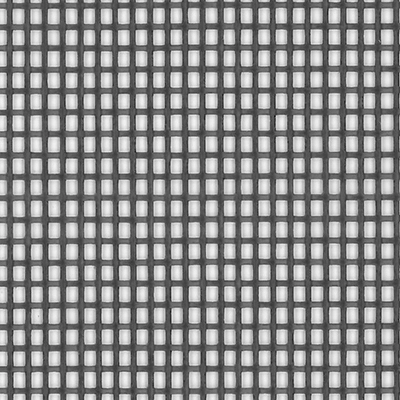

17x14 Black

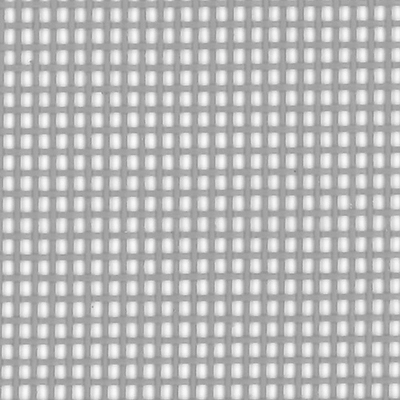

17x14 Grey

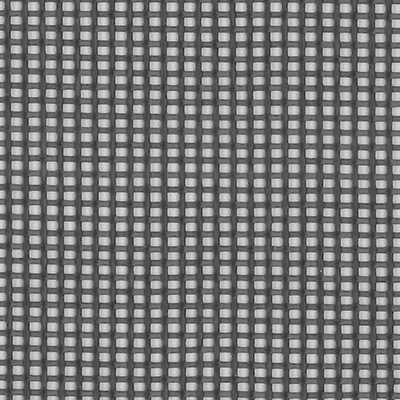

17x20 Black

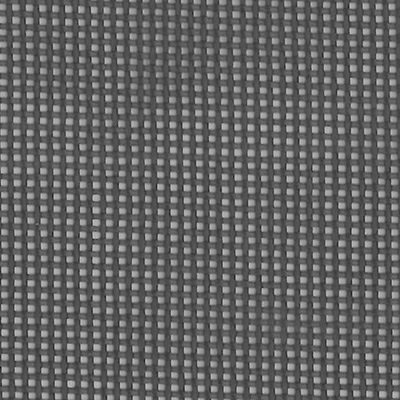

IS20-0404 Black

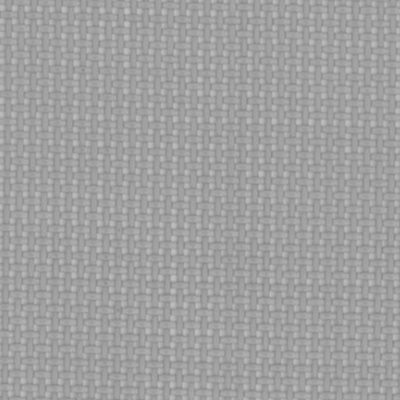

Is20-0505 Greyy
